Convenient Immersible Ultrasonic Transducer With High Intensity And Efficiency

Product Categories
AG Sonic Technology limited
Contact Now

Convenient Immersible Ultrasonic Transducer With High Intensity And Efficiency

  • 1
  • 2

Brand Name : AG SONIC

Model Number : TZ-1036

Certification : CE

Place of Origin : China

Payment Terms : T/T

Supply Ability : 300units/month

Delivery Time : 15 working days

Packaging Details : 1unit/wooden case

MOQ : negotiation

Price : negotiation

Feature : suitable for any tank customized

Ultrasonic transducers : based on tank capacity

Frequency : 28/40khz

Box material : SUS304/SUS316L

Control : Separate Generator

Advantage : Save cost

Contact Now

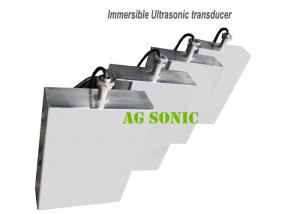

1800W Immersible Ultrasonic Transducer Box Installed for Own Made Tank

Brief introduction:

Compared with ultrasonic cleaner bath, immersible ultrasonic transducer system is much more convenient for shipment and it can help you save cost. You can install the transducer box in your own tank(sus tank, plastic tank, cement tank, etc.) as you like. Pls just inform us the size of your tank and requirements if any.

Specification details:
Ultrasonic transducer box size (mm): 500x460x100mm(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz
Ultrasonic transducers: 36pcs
Ultrasonic power: 1800W
Electronic generator: Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1,13AMP

Specifications:

Model Material Transducers Estimated volume Box size Cable
lead-out		 Ultrasonic frequency Ultrasonic power
(mm) (pcs) (L) (mm) (kHz) (W)
TZ-1003 SUS304/SUS316L 3 15 250x150x100 Rigid tube/
Flexible tube		 28/40 150
TZ-1006 6 30 305x250x100 300
TZ-1012 12 60 355x250x100 600
TZ-1018 18 90 406x305x100 900
TZ-1024 24 120 500x355x100 1200
TZ-1030 30 150 550x406x100 1500
TZ-1036 36 180 500x460x100 1800

Advantages:

  1. Material: SUS304/316L with 2.5mm thickness
  2. Durability and resistance: coated with Hard Chrome plating
  3. High intensity and efficiency BLT type transducers
  4. Easy and convenient to put in different tanks
  5. Various install methods:

    Place on wall (flexible/rigid tube or flange hole)

    Place on corner (suitable in the absence of lateral space)

    Place on bottom (flexible/rigid tube or flange hole)

Applications:

Industry Cleaning objects
machinery Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
electronics PCB board, electronic parts, TV parts, computer parts
Auto industry engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
Plating& painting polishing parts, SUS cutter, tableware, plating
Food industry Oven tray, boiler, bottles, bottle cap, filters
Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band,

watch cover, watch hand
others seal, flapper, coins, pottery, bank card, IGBT
